complexType Assessmenttype

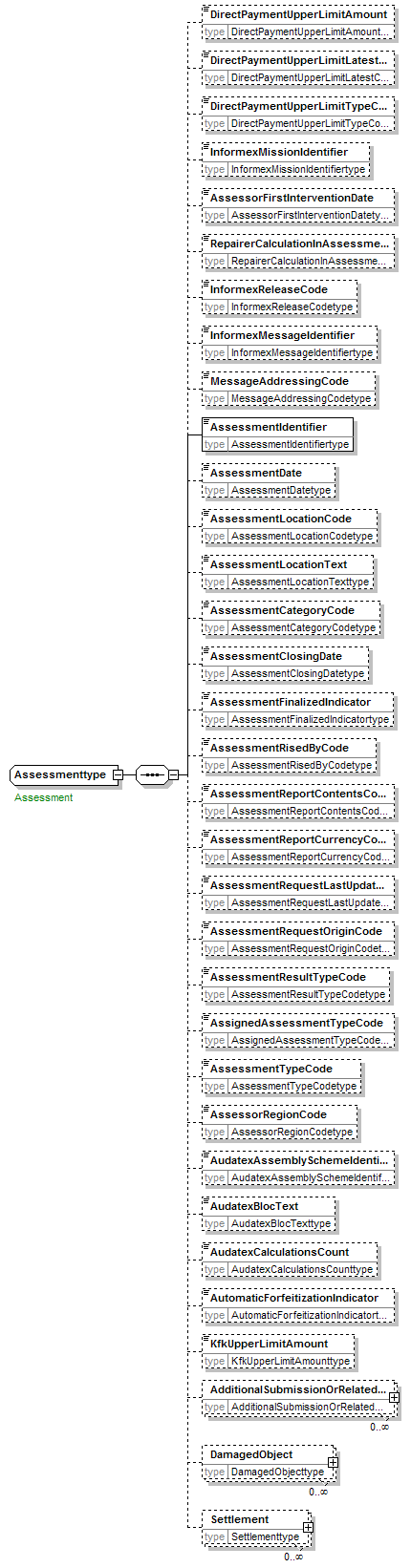

diagram
namespace	http://www.telebib2.org
children	DirectPaymentUpperLimitAmount DirectPaymentUpperLimitLatestChangeOriginCode DirectPaymentUpperLimitTypeCod InformexMissionIdentifier AssessorFirstInterventionDate RepairerCalculationInAssessmentReportIndicator InformexReleaseCode InformexMessageIdentifier MessageAddressingCode AssessmentIdentifier AssessmentDate AssessmentLocationCode AssessmentLocationText AssessmentCategoryCode AssessmentClosingDate AssessmentFinalizedIndicator AssessmentRisedByCode AssessmentReportContentsCode AssessmentReportCurrencyCode AssessmentRequestLastUpdateDate AssessmentRequestOriginCode AssessmentResultTypeCode AssignedAssessmentTypeCode AssessmentTypeCode AssessorRegionCode AudatexAssemblySchemeIdentifier AudatexBlocText AudatexCalculationsCount AutomaticForfeitizationIndicator KfkUpperLimitAmount AdditionalSubmissionOrRelatedDocument DamagedObject Settlement
annotation	appinfo A request for assessment or an assessment report. The classification of someone or something with respect to its worth. appinfo ASSMNT documentation Assessment documentation Schatting documentation Evaluation
source	<xsd:complexType name="Assessmenttype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">A request for assessment or an assessment report. The classification of someone or something with respect to its worth.</xsd:appinfo>     <xsd:appinfo source="tb2Edifact">ASSMNT</xsd:appinfo>     <xsd:documentation source="BusinessTerm" xml:lang="en">Assessment</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Schatting</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Evaluation</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="DirectPaymentUpperLimitAmount" type="DirectPaymentUpperLimitAmounttype" minOccurs="0"/>     <xsd:element name="DirectPaymentUpperLimitLatestChangeOriginCode" type="DirectPaymentUpperLimitLatestChangeOriginCodetype" minOccurs="0"/>     <xsd:element name="DirectPaymentUpperLimitTypeCod" type="DirectPaymentUpperLimitTypeCodtype" minOccurs="0"/>     <xsd:element name="InformexMissionIdentifier" type="InformexMissionIdentifiertype" minOccurs="0"/>     <xsd:element name="AssessorFirstInterventionDate" type="AssessorFirstInterventionDatetype" minOccurs="0"/>     <xsd:element name="RepairerCalculationInAssessmentReportIndicator" type="RepairerCalculationInAssessmentReportIndicatortype" minOccurs="0"/>     <xsd:element name="InformexReleaseCode" type="InformexReleaseCodetype" minOccurs="0"/>     <xsd:element name="InformexMessageIdentifier" type="InformexMessageIdentifiertype" minOccurs="0"/>     <xsd:element name="MessageAddressingCode" type="MessageAddressingCodetype" minOccurs="0"/>     <xsd:element name="AssessmentIdentifier" type="AssessmentIdentifiertype"/>     <xsd:element name="AssessmentDate" type="AssessmentDatetype" minOccurs="0"/>     <xsd:element name="AssessmentLocationCode" type="AssessmentLocationCodetype" minOccurs="0"/>     <xsd:element name="AssessmentLocationText" type="AssessmentLocationTexttype" minOccurs="0"/>     <xsd:element name="AssessmentCategoryCode" type="AssessmentCategoryCodetype" minOccurs="0"/>     <xsd:element name="AssessmentClosingDate" type="AssessmentClosingDatetype" minOccurs="0"/>     <xsd:element name="AssessmentFinalizedIndicator" type="AssessmentFinalizedIndicatortype" minOccurs="0"/>     <xsd:element name="AssessmentRisedByCode" type="AssessmentRisedByCodetype" minOccurs="0"/>     <xsd:element name="AssessmentReportContentsCode" type="AssessmentReportContentsCodetype" minOccurs="0"/>     <xsd:element name="AssessmentReportCurrencyCode" type="AssessmentReportCurrencyCodetype" minOccurs="0"/>     <xsd:element name="AssessmentRequestLastUpdateDate" type="AssessmentRequestLastUpdateDatetype" minOccurs="0"/>     <xsd:element name="AssessmentRequestOriginCode" type="AssessmentRequestOriginCodetype" minOccurs="0"/>     <xsd:element name="AssessmentResultTypeCode" type="AssessmentResultTypeCodetype" minOccurs="0"/>     <xsd:element name="AssignedAssessmentTypeCode" type="AssignedAssessmentTypeCodetype" minOccurs="0"/>     <xsd:element name="AssessmentTypeCode" type="AssessmentTypeCodetype" minOccurs="0"/>     <xsd:element name="AssessorRegionCode" type="AssessorRegionCodetype" minOccurs="0"/>     <xsd:element name="AudatexAssemblySchemeIdentifier" type="AudatexAssemblySchemeIdentifiertype" minOccurs="0"/>     <xsd:element name="AudatexBlocText" type="AudatexBlocTexttype" minOccurs="0"/>     <xsd:element name="AudatexCalculationsCount" type="AudatexCalculationsCounttype" minOccurs="0"/>     <xsd:element name="AutomaticForfeitizationIndicator" type="AutomaticForfeitizationIndicatortype" minOccurs="0"/>     <xsd:element name="KfkUpperLimitAmount" type="KfkUpperLimitAmounttype" minOccurs="0"/>     <xsd:element name="AdditionalSubmissionOrRelatedDocument" type="AdditionalSubmissionOrRelatedDocumenttype" minOccurs="0" maxOccurs="unbounded"/>     <xsd:element name="DamagedObject" type="DamagedObjecttype" minOccurs="0" maxOccurs="unbounded"/>     <xsd:element name="Settlement" type="Settlementtype" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence> </xsd:complexType>

element Assessmenttype/DirectPaymentUpperLimitAmount

diagram
namespace	http://www.telebib2.org
type	DirectPaymentUpperLimitAmounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DirectPaymentUpperLimitAmount" type="DirectPaymentUpperLimitAmounttype" minOccurs="0"/>

element Assessmenttype/DirectPaymentUpperLimitLatestChangeOriginCode

diagram
namespace	http://www.telebib2.org
type	DirectPaymentUpperLimitLatestChangeOriginCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DirectPaymentUpperLimitLatestChangeOriginCode" type="DirectPaymentUpperLimitLatestChangeOriginCodetype" minOccurs="0"/>

element Assessmenttype/DirectPaymentUpperLimitTypeCod

diagram
namespace	http://www.telebib2.org
type	DirectPaymentUpperLimitTypeCodtype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DirectPaymentUpperLimitTypeCod" type="DirectPaymentUpperLimitTypeCodtype" minOccurs="0"/>

element Assessmenttype/InformexMissionIdentifier

diagram
namespace	http://www.telebib2.org
type	InformexMissionIdentifiertype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InformexMissionIdentifier" type="InformexMissionIdentifiertype" minOccurs="0"/>

element Assessmenttype/AssessorFirstInterventionDate

diagram
namespace	http://www.telebib2.org
type	AssessorFirstInterventionDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessorFirstInterventionDate" type="AssessorFirstInterventionDatetype" minOccurs="0"/>

element Assessmenttype/RepairerCalculationInAssessmentReportIndicator

diagram
namespace	http://www.telebib2.org
type	RepairerCalculationInAssessmentReportIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="RepairerCalculationInAssessmentReportIndicator" type="RepairerCalculationInAssessmentReportIndicatortype" minOccurs="0"/>

element Assessmenttype/InformexReleaseCode

diagram
namespace	http://www.telebib2.org
type	InformexReleaseCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InformexReleaseCode" type="InformexReleaseCodetype" minOccurs="0"/>

element Assessmenttype/InformexMessageIdentifier

diagram
namespace	http://www.telebib2.org
type	InformexMessageIdentifiertype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InformexMessageIdentifier" type="InformexMessageIdentifiertype" minOccurs="0"/>

element Assessmenttype/MessageAddressingCode

diagram
namespace	http://www.telebib2.org
type	MessageAddressingCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="MessageAddressingCode" type="MessageAddressingCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentIdentifier

diagram
namespace	http://www.telebib2.org
type	AssessmentIdentifiertype
properties	isRef  0 content  simple
source	<xsd:element name="AssessmentIdentifier" type="AssessmentIdentifiertype"/>

element Assessmenttype/AssessmentDate

diagram
namespace	http://www.telebib2.org
type	AssessmentDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentDate" type="AssessmentDatetype" minOccurs="0"/>

element Assessmenttype/AssessmentLocationCode

diagram
namespace	http://www.telebib2.org
type	AssessmentLocationCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentLocationCode" type="AssessmentLocationCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentLocationText

diagram
namespace	http://www.telebib2.org
type	AssessmentLocationTexttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentLocationText" type="AssessmentLocationTexttype" minOccurs="0"/>

element Assessmenttype/AssessmentCategoryCode

diagram
namespace	http://www.telebib2.org
type	AssessmentCategoryCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentCategoryCode" type="AssessmentCategoryCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentClosingDate

diagram
namespace	http://www.telebib2.org
type	AssessmentClosingDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentClosingDate" type="AssessmentClosingDatetype" minOccurs="0"/>

element Assessmenttype/AssessmentFinalizedIndicator

diagram
namespace	http://www.telebib2.org
type	AssessmentFinalizedIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentFinalizedIndicator" type="AssessmentFinalizedIndicatortype" minOccurs="0"/>

element Assessmenttype/AssessmentRisedByCode

diagram
namespace	http://www.telebib2.org
type	AssessmentRisedByCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentRisedByCode" type="AssessmentRisedByCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentReportContentsCode

diagram
namespace	http://www.telebib2.org
type	AssessmentReportContentsCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentReportContentsCode" type="AssessmentReportContentsCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentReportCurrencyCode

diagram
namespace	http://www.telebib2.org
type	AssessmentReportCurrencyCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentReportCurrencyCode" type="AssessmentReportCurrencyCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentRequestLastUpdateDate

diagram
namespace	http://www.telebib2.org
type	AssessmentRequestLastUpdateDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentRequestLastUpdateDate" type="AssessmentRequestLastUpdateDatetype" minOccurs="0"/>

element Assessmenttype/AssessmentRequestOriginCode

diagram
namespace	http://www.telebib2.org
type	AssessmentRequestOriginCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentRequestOriginCode" type="AssessmentRequestOriginCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentResultTypeCode

diagram
namespace	http://www.telebib2.org
type	AssessmentResultTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentResultTypeCode" type="AssessmentResultTypeCodetype" minOccurs="0"/>

element Assessmenttype/AssignedAssessmentTypeCode

diagram
namespace	http://www.telebib2.org
type	AssignedAssessmentTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssignedAssessmentTypeCode" type="AssignedAssessmentTypeCodetype" minOccurs="0"/>

element Assessmenttype/AssessmentTypeCode

diagram
namespace	http://www.telebib2.org
type	AssessmentTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessmentTypeCode" type="AssessmentTypeCodetype" minOccurs="0"/>

element Assessmenttype/AssessorRegionCode

diagram
namespace	http://www.telebib2.org
type	AssessorRegionCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AssessorRegionCode" type="AssessorRegionCodetype" minOccurs="0"/>

element Assessmenttype/AudatexAssemblySchemeIdentifier

diagram
namespace	http://www.telebib2.org
type	AudatexAssemblySchemeIdentifiertype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AudatexAssemblySchemeIdentifier" type="AudatexAssemblySchemeIdentifiertype" minOccurs="0"/>

element Assessmenttype/AudatexBlocText

diagram
namespace	http://www.telebib2.org
type	AudatexBlocTexttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AudatexBlocText" type="AudatexBlocTexttype" minOccurs="0"/>

element Assessmenttype/AudatexCalculationsCount

diagram
namespace	http://www.telebib2.org
type	AudatexCalculationsCounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AudatexCalculationsCount" type="AudatexCalculationsCounttype" minOccurs="0"/>

element Assessmenttype/AutomaticForfeitizationIndicator

diagram
namespace	http://www.telebib2.org
type	AutomaticForfeitizationIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="AutomaticForfeitizationIndicator" type="AutomaticForfeitizationIndicatortype" minOccurs="0"/>

element Assessmenttype/KfkUpperLimitAmount

diagram
namespace	http://www.telebib2.org
type	KfkUpperLimitAmounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="KfkUpperLimitAmount" type="KfkUpperLimitAmounttype" minOccurs="0"/>

element Assessmenttype/AdditionalSubmissionOrRelatedDocument

diagram
namespace	http://www.telebib2.org
type	AdditionalSubmissionOrRelatedDocumenttype
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	CopiesToBeSentCount AssessmentRelatedDocumentsToBeDeliveredCode AssessmentRelatedDocumentSenderTypeCode AdditionalSubmissionSendingCode AdditionalSubmissionAdresseeIdentificationCode AdditionalSubmissionTotalCount
source	<xsd:element name="AdditionalSubmissionOrRelatedDocument" type="AdditionalSubmissionOrRelatedDocumenttype" minOccurs="0" maxOccurs="unbounded"/>

element Assessmenttype/DamagedObject

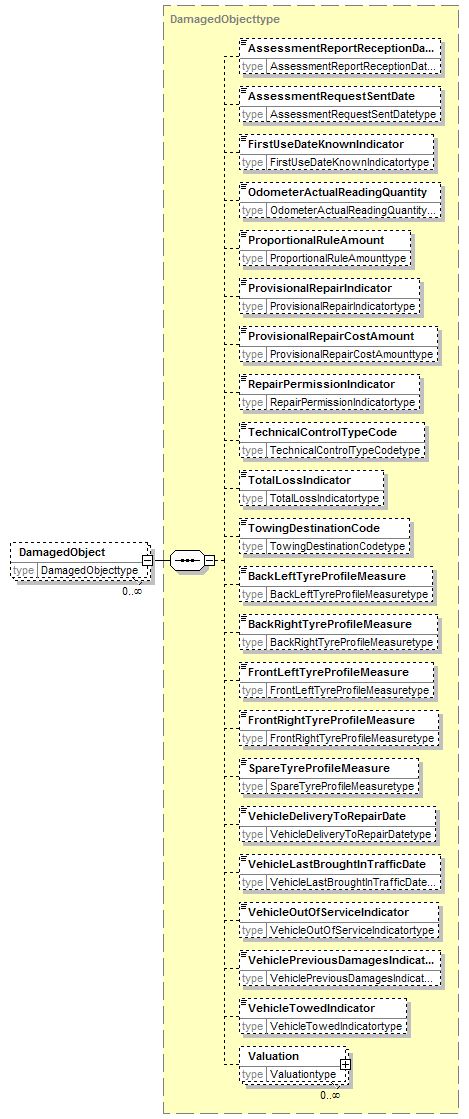

diagram
namespace	http://www.telebib2.org
type	DamagedObjecttype
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	AssessmentReportReceptionDate AssessmentRequestSentDate FirstUseDateKnownIndicator OdometerActualReadingQuantity ProportionalRuleAmount ProvisionalRepairIndicator ProvisionalRepairCostAmount RepairPermissionIndicator TechnicalControlTypeCode TotalLossIndicator TowingDestinationCode BackLeftTyreProfileMeasure BackRightTyreProfileMeasure FrontLeftTyreProfileMeasure FrontRightTyreProfileMeasure SpareTyreProfileMeasure VehicleDeliveryToRepairDate VehicleLastBroughtInTrafficDate VehicleOutOfServiceIndicator VehiclePreviousDamagesIndicator VehicleTowedIndicator Valuation
source	<xsd:element name="DamagedObject" type="DamagedObjecttype" minOccurs="0" maxOccurs="unbounded"/>

element Assessmenttype/Settlement

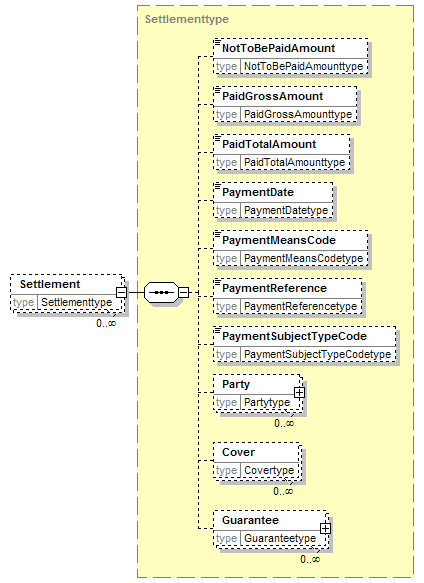

diagram
namespace	http://www.telebib2.org
type	Settlementtype
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	NotToBePaidAmount PaidGrossAmount PaidTotalAmount PaymentDate PaymentMeansCode PaymentReference PaymentSubjectTypeCode Party Cover Guarantee
source	<xsd:element name="Settlement" type="Settlementtype" minOccurs="0" maxOccurs="unbounded"/>
