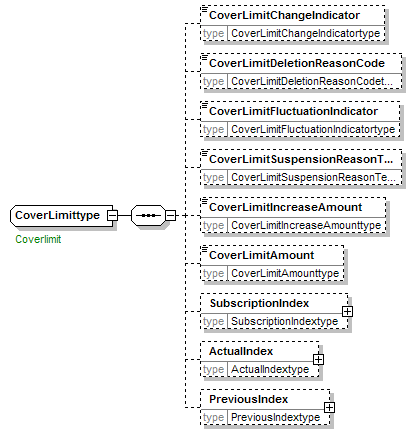

complexType CoverLimittype

diagram
namespace	http://www.telebib2.org
children	CoverLimitChangeIndicator CoverLimitDeletionReasonCode CoverLimitFluctuationIndicator CoverLimitSuspensionReasonText CoverLimitIncreaseAmount CoverLimitAmount SubscriptionIndex ActualIndex PreviousIndex
used by	complexTypes  AnnualIndemnificationtype Capitaltype DailyAllowancetype
annotation	appinfo Limit that applies to the cover terms for a policy. A limit may be expressed in many ways, such as a sum insured or a duration limit. There may be multiple limits to a single cover such as the standard limit and an extension. documentation Coverlimit documentation Dekkingslimiet documentation Limite de couverture
source	<xsd:complexType name="CoverLimittype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">Limit that applies to the cover terms for a policy. A limit may be expressed in many ways, such as a sum insured or a duration limit. There may be multiple limits to a single cover such as the standard limit and an extension.</xsd:appinfo>     <xsd:documentation source="BusinessTerm" xml:lang="en">Coverlimit</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Dekkingslimiet</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Limite de couverture</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="CoverLimitChangeIndicator" type="CoverLimitChangeIndicatortype" minOccurs="0"/>     <xsd:element name="CoverLimitDeletionReasonCode" type="CoverLimitDeletionReasonCodetype" minOccurs="0"/>     <xsd:element name="CoverLimitFluctuationIndicator" type="CoverLimitFluctuationIndicatortype" minOccurs="0"/>     <xsd:element name="CoverLimitSuspensionReasonText" type="CoverLimitSuspensionReasonTexttype" minOccurs="0"/>     <xsd:element name="CoverLimitIncreaseAmount" type="CoverLimitIncreaseAmounttype" minOccurs="0"/>     <xsd:element name="CoverLimitAmount" type="CoverLimitAmounttype" minOccurs="0"/>     <xsd:element name="SubscriptionIndex" type="SubscriptionIndextype" minOccurs="0"/>     <xsd:element name="ActualIndex" type="ActualIndextype" minOccurs="0"/>     <xsd:element name="PreviousIndex" type="PreviousIndextype" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element CoverLimittype/CoverLimitChangeIndicator

diagram
namespace	http://www.telebib2.org
type	CoverLimitChangeIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitChangeIndicator" type="CoverLimitChangeIndicatortype" minOccurs="0"/>

element CoverLimittype/CoverLimitDeletionReasonCode

diagram
namespace	http://www.telebib2.org
type	CoverLimitDeletionReasonCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitDeletionReasonCode" type="CoverLimitDeletionReasonCodetype" minOccurs="0"/>

element CoverLimittype/CoverLimitFluctuationIndicator

diagram
namespace	http://www.telebib2.org
type	CoverLimitFluctuationIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitFluctuationIndicator" type="CoverLimitFluctuationIndicatortype" minOccurs="0"/>

element CoverLimittype/CoverLimitSuspensionReasonText

diagram
namespace	http://www.telebib2.org
type	CoverLimitSuspensionReasonTexttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitSuspensionReasonText" type="CoverLimitSuspensionReasonTexttype" minOccurs="0"/>

element CoverLimittype/CoverLimitIncreaseAmount

diagram
namespace	http://www.telebib2.org
type	CoverLimitIncreaseAmounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitIncreaseAmount" type="CoverLimitIncreaseAmounttype" minOccurs="0"/>

element CoverLimittype/CoverLimitAmount

diagram
namespace	http://www.telebib2.org
type	CoverLimitAmounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="CoverLimitAmount" type="CoverLimitAmounttype" minOccurs="0"/>

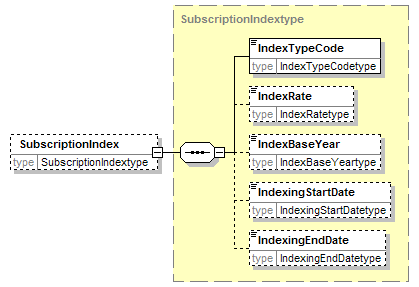

element CoverLimittype/SubscriptionIndex

diagram
namespace	http://www.telebib2.org
type	SubscriptionIndextype
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	IndexTypeCode IndexRate IndexBaseYear IndexingStartDate IndexingEndDate
source	<xsd:element name="SubscriptionIndex" type="SubscriptionIndextype" minOccurs="0"/>

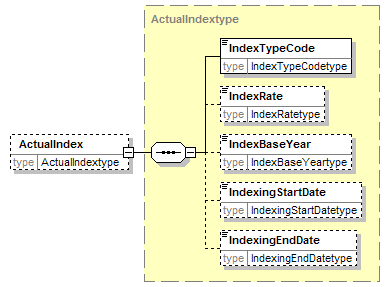

element CoverLimittype/ActualIndex

diagram
namespace	http://www.telebib2.org
type	ActualIndextype
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	IndexTypeCode IndexRate IndexBaseYear IndexingStartDate IndexingEndDate
source	<xsd:element name="ActualIndex" type="ActualIndextype" minOccurs="0"/>

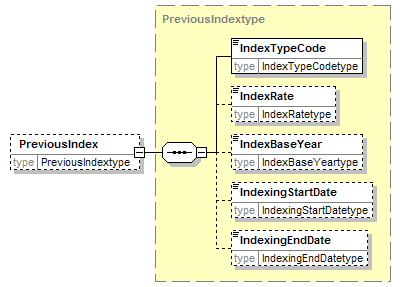

element CoverLimittype/PreviousIndex

diagram
namespace	http://www.telebib2.org
type	PreviousIndextype
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	IndexTypeCode IndexRate IndexBaseYear IndexingStartDate IndexingEndDate
source	<xsd:element name="PreviousIndex" type="PreviousIndextype" minOccurs="0"/>
