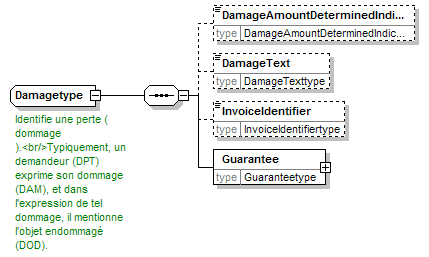

complexType Damagetype
diagram
namespace http://www.telebib2.org
children DamageAmountDeterminedIndicator DamageText InvoiceIdentifier Guarantee
used by
element Claimanttype/Damage
complexTypes MaterialDamagetype MoralDamagetype PecuniaryLosstype PhysicalInjurytype
annotation
appinfo
The basis for a claim for indemnity or damage under the terms of an insurance policy.
appinfo
(DAM)
documentation
Identifie une perte ( dommage ).<br/>Typiquement, un demandeur (DPT) exprime son dommage (DAM), et dans l'expression de tel dommage, il mentionne l'objet endommagé (DOD).
documentation
Identificeert een verlies ( schade ).<br/>Een schade-eiser (DPT) geeft de geleden schade (DAM) op, en binnen deze opgave vermeldt hij eveneens het object dat de schade onderging (DOD).
documentation
Loss
documentation
Damage or loss
documentation
Verlies
documentation
Dommage
source <xsd:complexType name="Damagetype">

<xsd:annotation>

<xsd:appinfo source="tb2Semantics">The basis for a claim for indemnity or damage under the terms of an insurance policy.</xsd:appinfo>

<xsd:appinfo source="tb2Edifact">(DAM)</xsd:appinfo>

<xsd:documentation source="BusinessDefinition" xml:lang="fr">Identifie une perte ( dommage ).<br/>Typiquement, un demandeur (DPT) exprime son dommage (DAM), et dans l'expression de tel dommage, il mentionne l'objet endommagé (DOD).</xsd:documentation>

<xsd:documentation source="BusinessDefinition" xml:lang="nl">Identificeert een verlies ( schade ).<br/>Een schade-eiser (DPT) geeft de geleden schade (DAM) op, en binnen deze opgave vermeldt hij eveneens het object dat de schade onderging (DOD).</xsd:documentation>

<xsd:documentation source="BusinessDefinition" xml:lang="en">Loss</xsd:documentation>

<xsd:documentation source="BusinessTerm" xml:lang="en">Damage or loss</xsd:documentation>

<xsd:documentation source="BusinessTerm" xml:lang="nl">Verlies</xsd:documentation>

<xsd:documentation source="BusinessTerm" xml:lang="fr">Dommage</xsd:documentation>

</xsd:annotation>

<xsd:sequence>

<xsd:element name="DamageAmountDeterminedIndicator" type="DamageAmountDeterminedIndicatortype" minOccurs="0"/>

<xsd:element name="DamageText" type="DamageTexttype" minOccurs="0"/>

<xsd:element name="InvoiceIdentifier" type="InvoiceIdentifiertype" minOccurs="0"/>

<xsd:element name="Guarantee" type="Guaranteetype"/>

</xsd:sequence>
</xsd:complexType>

element Damagetype/DamageAmountDeterminedIndicator
diagram
namespace http://www.telebib2.org
type DamageAmountDeterminedIndicatortype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="DamageAmountDeterminedIndicator" type="DamageAmountDeterminedIndicatortype" minOccurs="0"/>

element Damagetype/DamageText
diagram
namespace http://www.telebib2.org
type DamageTexttype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="DamageText" type="DamageTexttype" minOccurs="0"/>

element Damagetype/InvoiceIdentifier
diagram
namespace http://www.telebib2.org
type InvoiceIdentifiertype
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xsd:element name="InvoiceIdentifier" type="InvoiceIdentifiertype" minOccurs="0"/>

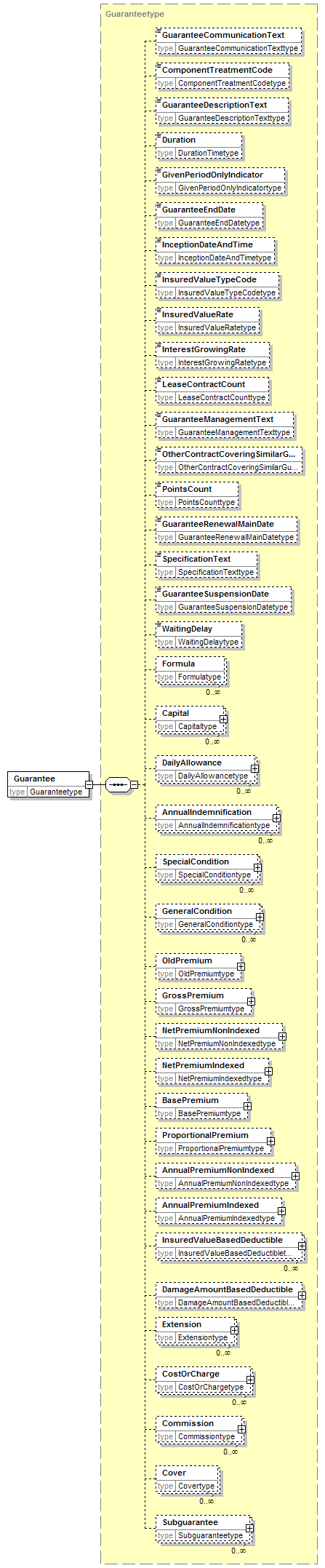

element Damagetype/Guarantee
diagram
namespace http://www.telebib2.org
type Guaranteetype
properties
isRef 0
content complex
children GuaranteeCommunicationText ComponentTreatmentCode GuaranteeDescriptionText Duration GivenPeriodOnlyIndicator GuaranteeEndDate InceptionDateAndTime InsuredValueTypeCode InsuredValueRate InterestGrowingRate LeaseContractCount GuaranteeManagementText OtherContractCoveringSimilarGuaranteeIndicator PointsCount GuaranteeRenewalMainDate SpecificationText GuaranteeSuspensionDate WaitingDelay Formula Capital DailyAllowance AnnualIndemnification SpecialCondition GeneralCondition OldPremium GrossPremium NetPremiumNonIndexed NetPremiumIndexed BasePremium ProportionalPremium AnnualPremiumNonIndexed AnnualPremiumIndexed InsuredValueBasedDeductible DamageAmountBasedDeductible Extension CostOrCharge Commission Cover Subguarantee
source <xsd:element name="Guarantee" type="Guaranteetype"/>
