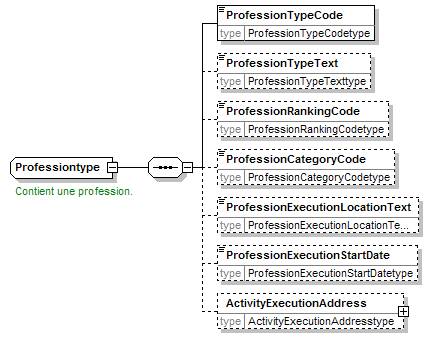

diagram | |||||||||||||||||
namespace | http://www.telebib2.org | ||||||||||||||||
children | ProfessionTypeCode ProfessionTypeText ProfessionRankingCode ProfessionCategoryCode ProfessionExecutionLocationText ProfessionExecutionStartDate ActivityExecutionAddress | ||||||||||||||||
used by |
|
||||||||||||||||
annotation |
|
||||||||||||||||
source | <xsd:complexType name="Professiontype"> <xsd:annotation> <xsd:appinfo source="tb2Semantics">The principal activity in your life for which you are paid. The employment a person has with one employer. Aka occupation, employment, job, activity.</xsd:appinfo> <xsd:appinfo source="tb2Edifact">(PFN)</xsd:appinfo> <xsd:documentation source="BusinessDefinition" xml:lang="fr">Contient une profession.</xsd:documentation> <xsd:documentation source="BusinessDefinition" xml:lang="nl">Bevat een beroep.</xsd:documentation> <xsd:documentation source="BusinessDefinition" xml:lang="en">Profession - The principal activity in your life for which you are paid. The employment a person has with one employer. Aka occupation, employment, job, activity.</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="en">Profession</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="nl">Beroep</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="fr">Profession</xsd:documentation> </xsd:annotation> <xsd:sequence> <xsd:element name="ProfessionTypeCode" type="ProfessionTypeCodetype"/> <xsd:element name="ProfessionTypeText" type="ProfessionTypeTexttype" minOccurs="0"/> <xsd:element name="ProfessionRankingCode" type="ProfessionRankingCodetype" minOccurs="0"/> <xsd:element name="ProfessionCategoryCode" type="ProfessionCategoryCodetype" minOccurs="0"/> <xsd:element name="ProfessionExecutionLocationText" type="ProfessionExecutionLocationTexttype" minOccurs="0"/> <xsd:element name="ProfessionExecutionStartDate" type="ProfessionExecutionStartDatetype" minOccurs="0"/> <xsd:element name="ActivityExecutionAddress" type="ActivityExecutionAddresstype" minOccurs="0"/> </xsd:sequence> </xsd:complexType> |
diagram | |||||
namespace | http://www.telebib2.org | ||||
type | ProfessionTypeCodetype | ||||
properties |
|
||||
source | <xsd:element name="ProfessionTypeCode" type="ProfessionTypeCodetype"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ProfessionTypeTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ProfessionTypeText" type="ProfessionTypeTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ProfessionRankingCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ProfessionRankingCode" type="ProfessionRankingCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ProfessionCategoryCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ProfessionCategoryCode" type="ProfessionCategoryCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ProfessionExecutionLocationTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ProfessionExecutionLocationText" type="ProfessionExecutionLocationTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ProfessionExecutionStartDatetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ProfessionExecutionStartDate" type="ProfessionExecutionStartDatetype" minOccurs="0"/> |

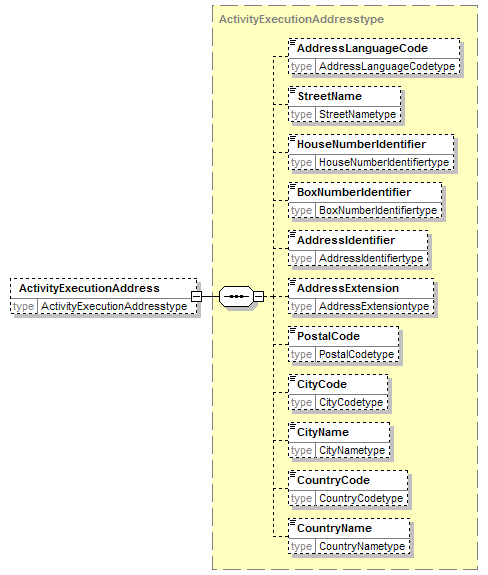

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ActivityExecutionAddresstype | ||||||||
properties |
|
||||||||
children | AddressLanguageCode StreetName HouseNumberIdentifier BoxNumberIdentifier AddressIdentifier AddressExtension PostalCode CityCode CityName CountryCode CountryName | ||||||||
source | <xsd:element name="ActivityExecutionAddress" type="ActivityExecutionAddresstype" minOccurs="0"/> |
