complexType VERIDASSRegistrationtype

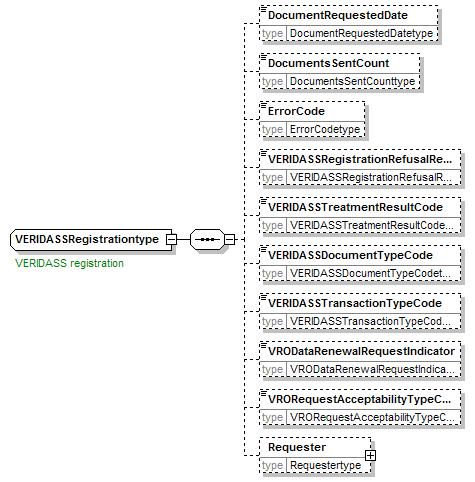

diagram
namespace	http://www.telebib2.org
children	DocumentRequestedDate DocumentsSentCount ErrorCode VERIDASSRegistrationRefusalReasonText VERIDASSTreatmentResultCode VERIDASSDocumentTypeCode VERIDASSTransactionTypeCode VRODataRenewalRequestIndicator VRORequestAcceptabilityTypeCode Requester
used by	element  MotorInsuranceContracttype/VERIDASSRegistration
annotation	appinfo Registration of the insurance details of a vehicle in the system enabling to identify the insurer and/or to control the state of insurance of a vehicle registered in Belgium. appinfo FRPREV documentation VERIDASS registration documentation VERIDASS registratie documentation Enregistrement VERIDASS documentation VERIDASS Einschreibung
source	<xsd:complexType name="VERIDASSRegistrationtype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">Registration of the insurance details of a vehicle in the system enabling to identify the insurer and/or to control the state of insurance of a vehicle registered in Belgium.</xsd:appinfo>     <xsd:appinfo source="tb2Edifact">FRPREV</xsd:appinfo>     <xsd:documentation source="BusinessTerm" xml:lang="en">VERIDASS registration</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">VERIDASS registratie</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Enregistrement VERIDASS</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="ge">VERIDASS Einschreibung</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="DocumentRequestedDate" type="DocumentRequestedDatetype" minOccurs="0"/>     <xsd:element name="DocumentsSentCount" type="DocumentsSentCounttype" minOccurs="0"/>     <xsd:element name="ErrorCode" type="ErrorCodetype" minOccurs="0"/>     <xsd:element name="VERIDASSRegistrationRefusalReasonText" type="VERIDASSRegistrationRefusalReasonTexttype" minOccurs="0"/>     <xsd:element name="VERIDASSTreatmentResultCode" type="VERIDASSTreatmentResultCodetype" minOccurs="0"/>     <xsd:element name="VERIDASSDocumentTypeCode" type="VERIDASSDocumentTypeCodetype" minOccurs="0"/>     <xsd:element name="VERIDASSTransactionTypeCode" type="VERIDASSTransactionTypeCodetype" minOccurs="0"/>     <xsd:element name="VRODataRenewalRequestIndicator" type="VRODataRenewalRequestIndicatortype" minOccurs="0"/>     <xsd:element name="VRORequestAcceptabilityTypeCode" type="VRORequestAcceptabilityTypeCodetype" minOccurs="0"/>     <xsd:element name="Requester" type="Requestertype" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element VERIDASSRegistrationtype/DocumentRequestedDate

diagram
namespace	http://www.telebib2.org
type	DocumentRequestedDatetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DocumentRequestedDate" type="DocumentRequestedDatetype" minOccurs="0"/>

element VERIDASSRegistrationtype/DocumentsSentCount

diagram
namespace	http://www.telebib2.org
type	DocumentsSentCounttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="DocumentsSentCount" type="DocumentsSentCounttype" minOccurs="0"/>

element VERIDASSRegistrationtype/ErrorCode

diagram
namespace	http://www.telebib2.org
type	ErrorCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="ErrorCode" type="ErrorCodetype" minOccurs="0"/>

element VERIDASSRegistrationtype/VERIDASSRegistrationRefusalReasonText

diagram
namespace	http://www.telebib2.org
type	VERIDASSRegistrationRefusalReasonTexttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VERIDASSRegistrationRefusalReasonText" type="VERIDASSRegistrationRefusalReasonTexttype" minOccurs="0"/>

element VERIDASSRegistrationtype/VERIDASSTreatmentResultCode

diagram
namespace	http://www.telebib2.org
type	VERIDASSTreatmentResultCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VERIDASSTreatmentResultCode" type="VERIDASSTreatmentResultCodetype" minOccurs="0"/>

element VERIDASSRegistrationtype/VERIDASSDocumentTypeCode

diagram
namespace	http://www.telebib2.org
type	VERIDASSDocumentTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VERIDASSDocumentTypeCode" type="VERIDASSDocumentTypeCodetype" minOccurs="0"/>

element VERIDASSRegistrationtype/VERIDASSTransactionTypeCode

diagram
namespace	http://www.telebib2.org
type	VERIDASSTransactionTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VERIDASSTransactionTypeCode" type="VERIDASSTransactionTypeCodetype" minOccurs="0"/>

element VERIDASSRegistrationtype/VRODataRenewalRequestIndicator

diagram
namespace	http://www.telebib2.org
type	VRODataRenewalRequestIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VRODataRenewalRequestIndicator" type="VRODataRenewalRequestIndicatortype" minOccurs="0"/>

element VERIDASSRegistrationtype/VRORequestAcceptabilityTypeCode

diagram
namespace	http://www.telebib2.org
type	VRORequestAcceptabilityTypeCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="VRORequestAcceptabilityTypeCode" type="VRORequestAcceptabilityTypeCodetype" minOccurs="0"/>

element VERIDASSRegistrationtype/Requester

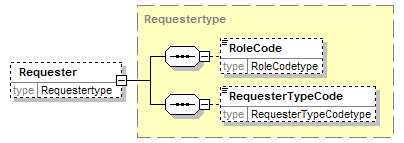

diagram
namespace	http://www.telebib2.org
type	Requestertype
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RoleCode RequesterTypeCode
source	<xsd:element name="Requester" type="Requestertype" minOccurs="0"/>
