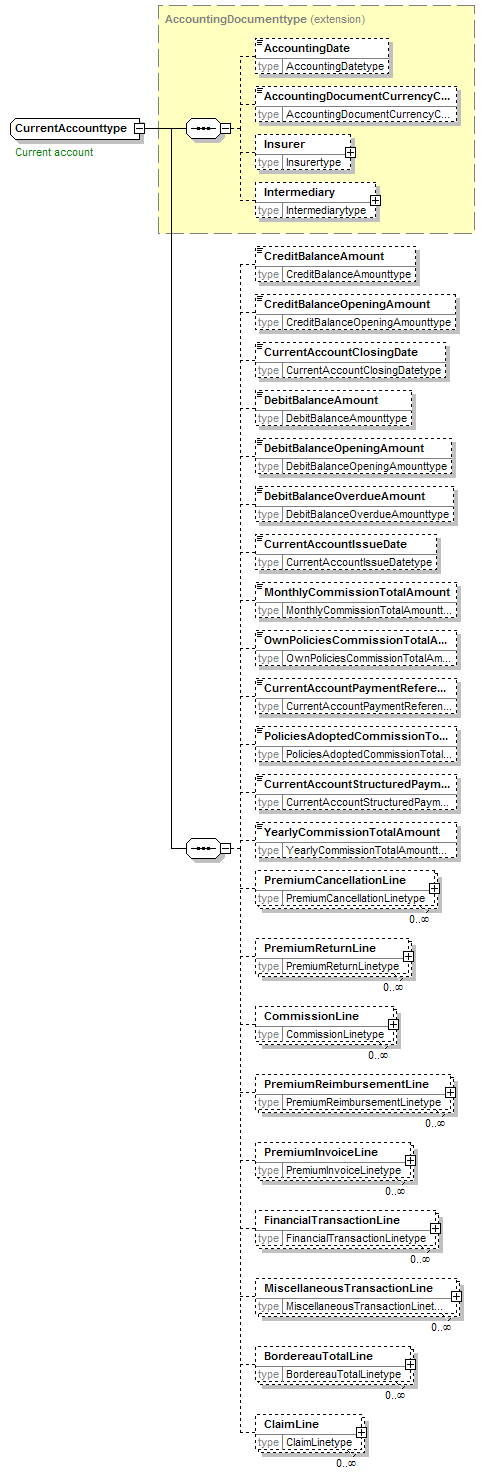

diagram | |||||||||||||
namespace | http://www.telebib2.org | ||||||||||||
type | extension of AccountingDocumenttype | ||||||||||||
properties |
|
||||||||||||
children | AccountingDate AccountingDocumentCurrencyCode Insurer Intermediary CreditBalanceAmount CreditBalanceOpeningAmount CurrentAccountClosingDate DebitBalanceAmount DebitBalanceOpeningAmount DebitBalanceOverdueAmount CurrentAccountIssueDate MonthlyCommissionTotalAmount OwnPoliciesCommissionTotalAmount CurrentAccountPaymentReference PoliciesAdoptedCommissionTotalAmount CurrentAccountStructuredPaymentReferenceText YearlyCommissionTotalAmount PremiumCancellationLine PremiumReturnLine CommissionLine PremiumReimbursementLine PremiumInvoiceLine FinancialTransactionLine MiscellaneousTransactionLine BordereauTotalLine ClaimLine | ||||||||||||
annotation |
|
||||||||||||
source | <xsd:complexType name="CurrentAccounttype"> <xsd:annotation> <xsd:appinfo source="tb2View">CurrentAc</xsd:appinfo> <xsd:appinfo source="tb2Semantics">A monthly financial statement provided to an intermediary by an insurer showing premiums written, cancellations, endorsements, and commissions. Balance of payments.</xsd:appinfo> <xsd:appinfo source="tb2Edifact">CURRAC</xsd:appinfo> <xsd:documentation source="BusinessTerm" xml:lang="en">Current account</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="nl">Rekeninguittreksel</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="fr">Extrait de compte</xsd:documentation> </xsd:annotation> <xsd:complexContent> <xsd:extension base="AccountingDocumenttype"> <xsd:sequence> <xsd:element name="CreditBalanceAmount" type="CreditBalanceAmounttype" minOccurs="0"/> <xsd:element name="CreditBalanceOpeningAmount" type="CreditBalanceOpeningAmounttype" minOccurs="0"/> <xsd:element name="CurrentAccountClosingDate" type="CurrentAccountClosingDatetype" minOccurs="0"/> <xsd:element name="DebitBalanceAmount" type="DebitBalanceAmounttype" minOccurs="0"/> <xsd:element name="DebitBalanceOpeningAmount" type="DebitBalanceOpeningAmounttype" minOccurs="0"/> <xsd:element name="DebitBalanceOverdueAmount" type="DebitBalanceOverdueAmounttype" minOccurs="0"/> <xsd:element name="CurrentAccountIssueDate" type="CurrentAccountIssueDatetype" minOccurs="0"/> <xsd:element name="MonthlyCommissionTotalAmount" type="MonthlyCommissionTotalAmounttype" minOccurs="0"/> <xsd:element name="OwnPoliciesCommissionTotalAmount" type="OwnPoliciesCommissionTotalAmounttype" minOccurs="0"/> <xsd:element name="CurrentAccountPaymentReference" type="CurrentAccountPaymentReferencetype" minOccurs="0"/> <xsd:element name="PoliciesAdoptedCommissionTotalAmount" type="PoliciesAdoptedCommissionTotalAmounttype" minOccurs="0"/> <xsd:element name="CurrentAccountStructuredPaymentReferenceText" type="CurrentAccountStructuredPaymentReferenceTexttype" minOccurs="0"/> <xsd:element name="YearlyCommissionTotalAmount" type="YearlyCommissionTotalAmounttype" minOccurs="0"/> <xsd:element name="PremiumCancellationLine" type="PremiumCancellationLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="PremiumReturnLine" type="PremiumReturnLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="CommissionLine" type="CommissionLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="PremiumReimbursementLine" type="PremiumReimbursementLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="PremiumInvoiceLine" type="PremiumInvoiceLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="FinancialTransactionLine" type="FinancialTransactionLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="MiscellaneousTransactionLine" type="MiscellaneousTransactionLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="BordereauTotalLine" type="BordereauTotalLinetype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="ClaimLine" type="ClaimLinetype" minOccurs="0" maxOccurs="unbounded"/> </xsd:sequence> </xsd:extension> </xsd:complexContent> </xsd:complexType> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CreditBalanceAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CreditBalanceAmount" type="CreditBalanceAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CreditBalanceOpeningAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CreditBalanceOpeningAmount" type="CreditBalanceOpeningAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CurrentAccountClosingDatetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CurrentAccountClosingDate" type="CurrentAccountClosingDatetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | DebitBalanceAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="DebitBalanceAmount" type="DebitBalanceAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | DebitBalanceOpeningAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="DebitBalanceOpeningAmount" type="DebitBalanceOpeningAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | DebitBalanceOverdueAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="DebitBalanceOverdueAmount" type="DebitBalanceOverdueAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CurrentAccountIssueDatetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CurrentAccountIssueDate" type="CurrentAccountIssueDatetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | MonthlyCommissionTotalAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="MonthlyCommissionTotalAmount" type="MonthlyCommissionTotalAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | OwnPoliciesCommissionTotalAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="OwnPoliciesCommissionTotalAmount" type="OwnPoliciesCommissionTotalAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CurrentAccountPaymentReferencetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CurrentAccountPaymentReference" type="CurrentAccountPaymentReferencetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PoliciesAdoptedCommissionTotalAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="PoliciesAdoptedCommissionTotalAmount" type="PoliciesAdoptedCommissionTotalAmounttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CurrentAccountStructuredPaymentReferenceTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="CurrentAccountStructuredPaymentReferenceText" type="CurrentAccountStructuredPaymentReferenceTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | YearlyCommissionTotalAmounttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="YearlyCommissionTotalAmount" type="YearlyCommissionTotalAmounttype" minOccurs="0"/> |

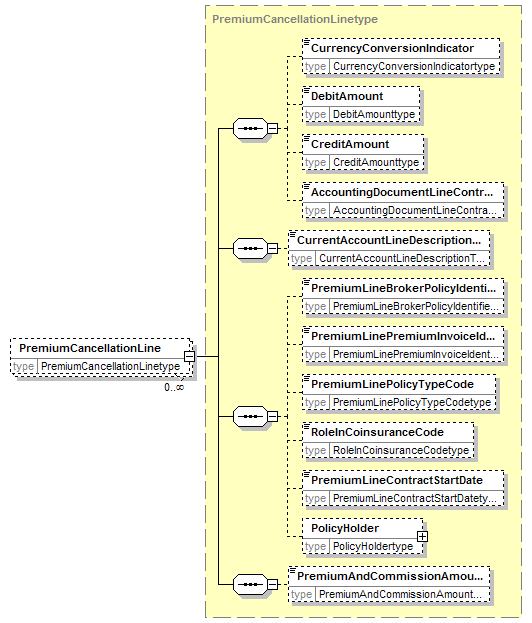

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PremiumCancellationLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText PremiumLineBrokerPolicyIdentifier PremiumLinePremiumInvoiceIdentifier PremiumLinePolicyTypeCode RoleInCoinsuranceCode PremiumLineContractStartDate PolicyHolder PremiumAndCommissionAmountReverseIndicator | ||||||||
source | <xsd:element name="PremiumCancellationLine" type="PremiumCancellationLinetype" minOccurs="0" maxOccurs="unbounded"/> |

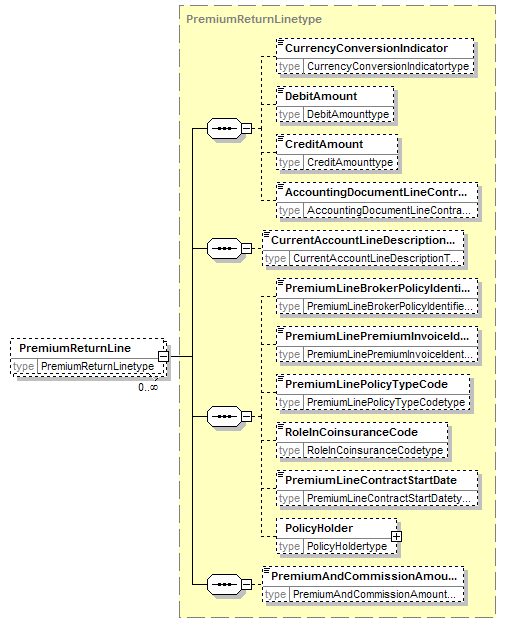

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PremiumReturnLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText PremiumLineBrokerPolicyIdentifier PremiumLinePremiumInvoiceIdentifier PremiumLinePolicyTypeCode RoleInCoinsuranceCode PremiumLineContractStartDate PolicyHolder PremiumAndCommissionAmountReverseIndicator | ||||||||
source | <xsd:element name="PremiumReturnLine" type="PremiumReturnLinetype" minOccurs="0" maxOccurs="unbounded"/> |

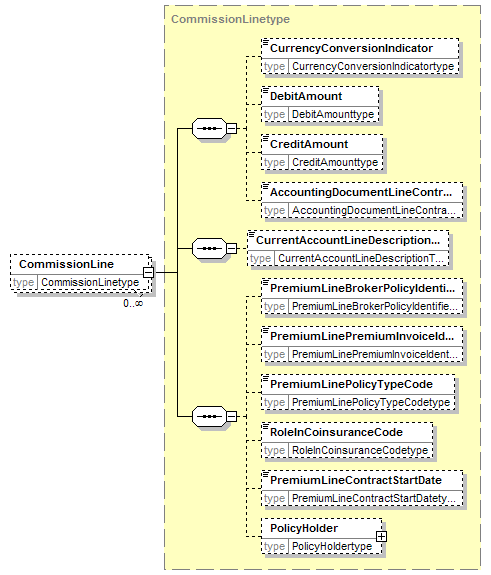

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | CommissionLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText PremiumLineBrokerPolicyIdentifier PremiumLinePremiumInvoiceIdentifier PremiumLinePolicyTypeCode RoleInCoinsuranceCode PremiumLineContractStartDate PolicyHolder | ||||||||
source | <xsd:element name="CommissionLine" type="CommissionLinetype" minOccurs="0" maxOccurs="unbounded"/> |

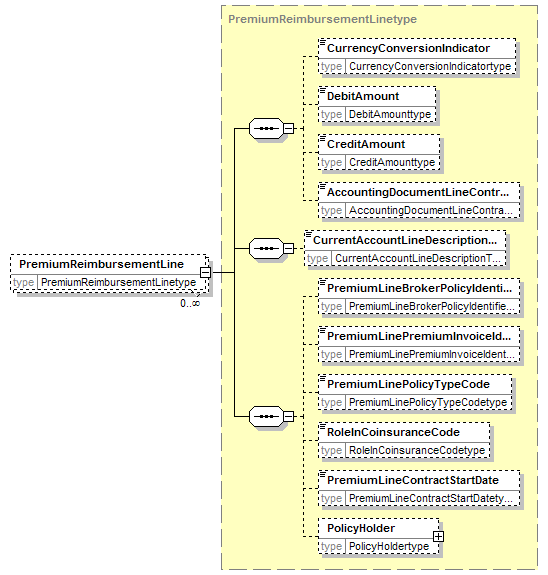

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PremiumReimbursementLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText PremiumLineBrokerPolicyIdentifier PremiumLinePremiumInvoiceIdentifier PremiumLinePolicyTypeCode RoleInCoinsuranceCode PremiumLineContractStartDate PolicyHolder | ||||||||
source | <xsd:element name="PremiumReimbursementLine" type="PremiumReimbursementLinetype" minOccurs="0" maxOccurs="unbounded"/> |

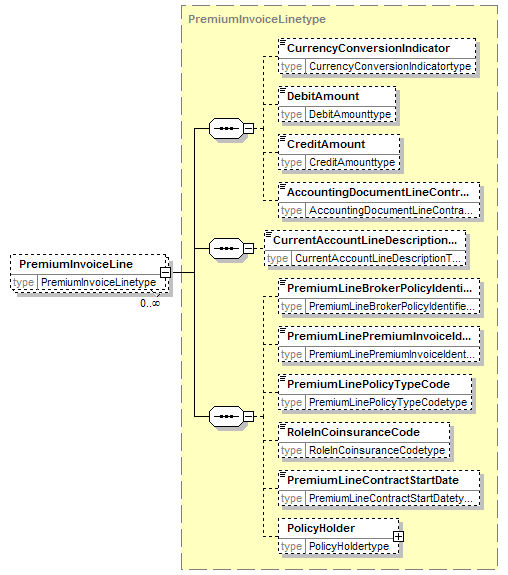

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PremiumInvoiceLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText PremiumLineBrokerPolicyIdentifier PremiumLinePremiumInvoiceIdentifier PremiumLinePolicyTypeCode RoleInCoinsuranceCode PremiumLineContractStartDate PolicyHolder | ||||||||
source | <xsd:element name="PremiumInvoiceLine" type="PremiumInvoiceLinetype" minOccurs="0" maxOccurs="unbounded"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | FinancialTransactionLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText | ||||||||
source | <xsd:element name="FinancialTransactionLine" type="FinancialTransactionLinetype" minOccurs="0" maxOccurs="unbounded"/> |

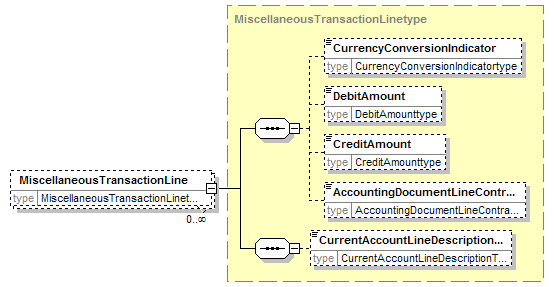

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | MiscellaneousTransactionLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText | ||||||||
source | <xsd:element name="MiscellaneousTransactionLine" type="MiscellaneousTransactionLinetype" minOccurs="0" maxOccurs="unbounded"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | BordereauTotalLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText | ||||||||
source | <xsd:element name="BordereauTotalLine" type="BordereauTotalLinetype" minOccurs="0" maxOccurs="unbounded"/> |

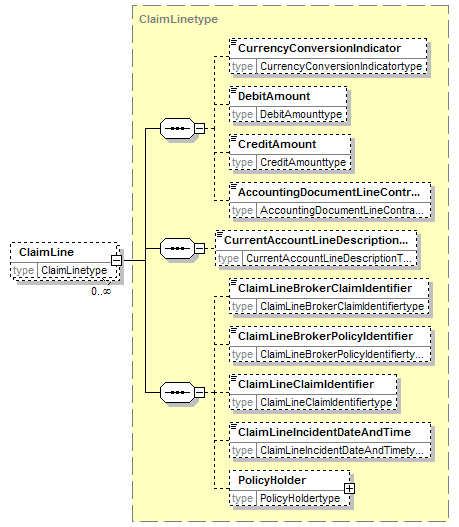

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ClaimLinetype | ||||||||
properties |
|
||||||||
children | CurrencyConversionIndicator DebitAmount CreditAmount AccountingDocumentLineContractIdentifier CurrentAccountLineDescriptionText ClaimLineBrokerClaimIdentifier ClaimLineBrokerPolicyIdentifier ClaimLineClaimIdentifier ClaimLineIncidentDateAndTime PolicyHolder | ||||||||
source | <xsd:element name="ClaimLine" type="ClaimLinetype" minOccurs="0" maxOccurs="unbounded"/> |
