complexType InsuranceObjecttype

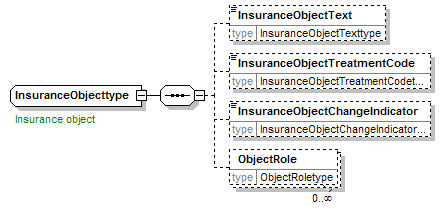

diagram
namespace	http://www.telebib2.org
children	InsuranceObjectText InsuranceObjectTreatmentCode InsuranceObjectChangeIndicator ObjectRole
used by	elements  Contracttype/InsuranceObject Incidenttype/InsuranceObject PremiumPeriodtype/InsuranceObject complexTypes  Activitytype Animaltype BondOrStocktype Communitytype ConstructionSitetype Eventtype Familytype MaterialObjecttype Persontype ProductBranch26Objecttype
annotation	appinfo Something having concrete existence; living or non-living that forms an element of or constitutes the subject matter of insurance. The object may be a single occurrence of an object or a group of objects. An insurance object can be a person or an activity. appinfo (ROD) or (DOD) : +998 if not further specified documentation Insurance object documentation Verzekeringsobject documentation Objet d'assurance documentation Something having concrete existence; living or non-living that forms an element of or constitutes the subject matter of insurance. The object may be a single occurrence of an object or a group of objects. An insurance object can be a person or an activity.
source	<xsd:complexType name="InsuranceObjecttype">   <xsd:annotation>     <xsd:appinfo source="tb2Semantics">Something having concrete existence; living or non-living that forms an element of or constitutes the subject matter of insurance. The object may be a single occurrence of an object or a group of objects. An insurance object can be a person or an activity.</xsd:appinfo>     <xsd:appinfo source="tb2Edifact">(ROD) or (DOD) : +998 if not further specified</xsd:appinfo>     <xsd:documentation source="BusinessTerm" xml:lang="en">Insurance object</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="nl">Verzekeringsobject</xsd:documentation>     <xsd:documentation source="BusinessTerm" xml:lang="fr">Objet d'assurance</xsd:documentation>     <xsd:documentation source="BusinessDefinition" xml:lang="en">Something having concrete existence; living or non-living that forms an element of or constitutes the subject matter of insurance. The object may be a single occurrence of an object or a group of objects. An insurance object can be a person or an activity.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element name="InsuranceObjectText" type="InsuranceObjectTexttype" minOccurs="0"/>     <xsd:element name="InsuranceObjectTreatmentCode" type="InsuranceObjectTreatmentCodetype" minOccurs="0"/>     <xsd:element name="InsuranceObjectChangeIndicator" type="InsuranceObjectChangeIndicatortype" minOccurs="0"/>     <xsd:element name="ObjectRole" type="ObjectRoletype" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence> </xsd:complexType>

element InsuranceObjecttype/InsuranceObjectText

diagram
namespace	http://www.telebib2.org
type	InsuranceObjectTexttype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InsuranceObjectText" type="InsuranceObjectTexttype" minOccurs="0"/>

element InsuranceObjecttype/InsuranceObjectTreatmentCode

diagram
namespace	http://www.telebib2.org
type	InsuranceObjectTreatmentCodetype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InsuranceObjectTreatmentCode" type="InsuranceObjectTreatmentCodetype" minOccurs="0"/>

element InsuranceObjecttype/InsuranceObjectChangeIndicator

diagram
namespace	http://www.telebib2.org
type	InsuranceObjectChangeIndicatortype
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="InsuranceObjectChangeIndicator" type="InsuranceObjectChangeIndicatortype" minOccurs="0"/>

element InsuranceObjecttype/ObjectRole

diagram
namespace	http://www.telebib2.org
type	ObjectRoletype
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
source	<xsd:element name="ObjectRole" type="ObjectRoletype" minOccurs="0" maxOccurs="unbounded"/>
