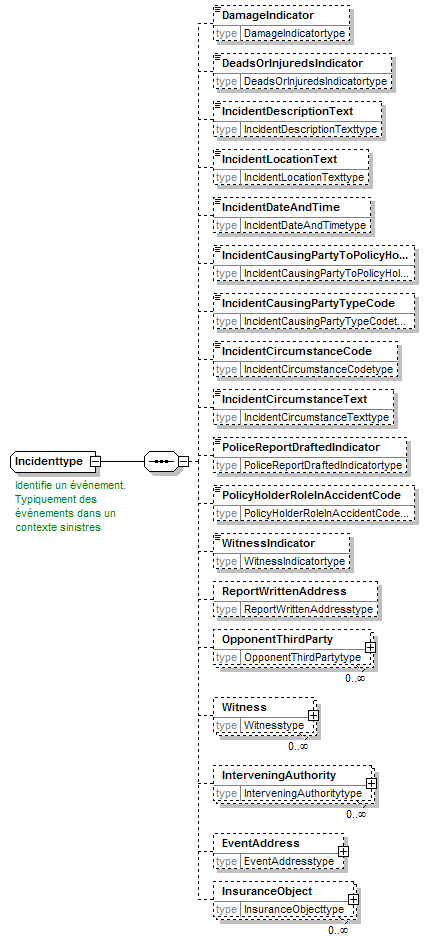

diagram | |||||||||||||||||
namespace | http://www.telebib2.org | ||||||||||||||||
children | DamageIndicator DeadsOrInjuredsIndicator IncidentDescriptionText IncidentLocationText IncidentDateAndTime IncidentCausingPartyToPolicyHolderRelationshipTypeCode IncidentCausingPartyTypeCode IncidentCircumstanceCode IncidentCircumstanceText PoliceReportDraftedIndicator PolicyHolderRoleInAccidentCode WitnessIndicator ReportWrittenAddress OpponentThirdParty Witness InterveningAuthority EventAddress InsuranceObject | ||||||||||||||||
used by | |||||||||||||||||
annotation |
|
||||||||||||||||
source | <xsd:complexType name="Incidenttype"> <xsd:annotation> <xsd:appinfo source="tb2Semantics">An event giving rise to one or more losses.</xsd:appinfo> <xsd:appinfo source="tb2Edifact">(EVT+998)</xsd:appinfo> <xsd:documentation source="BusinessDefinition" xml:lang="fr">Identifie un événement. Typiquement des événements dans un contexte sinistres</xsd:documentation> <xsd:documentation source="BusinessDefinition" xml:lang="nl">Identificeert een gebeurtenis. Men denkt hier in eerste instantie in het kader van de schades.</xsd:documentation> <xsd:documentation source="BusinessDefinition" xml:lang="en">An event giving rise to one or more losses.</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="en">Incident</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="nl">Incident</xsd:documentation> <xsd:documentation source="BusinessTerm" xml:lang="fr">Incident</xsd:documentation> </xsd:annotation> <xsd:sequence> <xsd:element name="DamageIndicator" type="DamageIndicatortype" minOccurs="0"/> <xsd:element name="DeadsOrInjuredsIndicator" type="DeadsOrInjuredsIndicatortype" minOccurs="0"/> <xsd:element name="IncidentDescriptionText" type="IncidentDescriptionTexttype" minOccurs="0"/> <xsd:element name="IncidentLocationText" type="IncidentLocationTexttype" minOccurs="0"/> <xsd:element name="IncidentDateAndTime" type="IncidentDateAndTimetype" minOccurs="0"/> <xsd:element name="IncidentCausingPartyToPolicyHolderRelationshipTypeCode" type="IncidentCausingPartyToPolicyHolderRelationshipTypeCodetype" minOccurs="0"/> <xsd:element name="IncidentCausingPartyTypeCode" type="IncidentCausingPartyTypeCodetype" minOccurs="0"/> <xsd:element name="IncidentCircumstanceCode" type="IncidentCircumstanceCodetype" minOccurs="0"/> <xsd:element name="IncidentCircumstanceText" type="IncidentCircumstanceTexttype" minOccurs="0"/> <xsd:element name="PoliceReportDraftedIndicator" type="PoliceReportDraftedIndicatortype" minOccurs="0"/> <xsd:element name="PolicyHolderRoleInAccidentCode" type="PolicyHolderRoleInAccidentCodetype" minOccurs="0"/> <xsd:element name="WitnessIndicator" type="WitnessIndicatortype" minOccurs="0"/> <xsd:element name="ReportWrittenAddress" type="ReportWrittenAddresstype" minOccurs="0"/> <xsd:element name="OpponentThirdParty" type="OpponentThirdPartytype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="Witness" type="Witnesstype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="InterveningAuthority" type="InterveningAuthoritytype" minOccurs="0" maxOccurs="unbounded"/> <xsd:element name="EventAddress" type="EventAddresstype" minOccurs="0"/> <xsd:element name="InsuranceObject" type="InsuranceObjecttype" minOccurs="0" maxOccurs="unbounded"/> </xsd:sequence> </xsd:complexType> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | DamageIndicatortype | ||||||||
properties |
|
||||||||
source | <xsd:element name="DamageIndicator" type="DamageIndicatortype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | DeadsOrInjuredsIndicatortype | ||||||||
properties |
|
||||||||
source | <xsd:element name="DeadsOrInjuredsIndicator" type="DeadsOrInjuredsIndicatortype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentDescriptionTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentDescriptionText" type="IncidentDescriptionTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentLocationTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentLocationText" type="IncidentLocationTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentDateAndTimetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentDateAndTime" type="IncidentDateAndTimetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentCausingPartyToPolicyHolderRelationshipTypeCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentCausingPartyToPolicyHolderRelationshipTypeCode" type="IncidentCausingPartyToPolicyHolderRelationshipTypeCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentCausingPartyTypeCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentCausingPartyTypeCode" type="IncidentCausingPartyTypeCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentCircumstanceCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentCircumstanceCode" type="IncidentCircumstanceCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | IncidentCircumstanceTexttype | ||||||||
properties |
|
||||||||
source | <xsd:element name="IncidentCircumstanceText" type="IncidentCircumstanceTexttype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PoliceReportDraftedIndicatortype | ||||||||
properties |
|
||||||||
source | <xsd:element name="PoliceReportDraftedIndicator" type="PoliceReportDraftedIndicatortype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | PolicyHolderRoleInAccidentCodetype | ||||||||
properties |
|
||||||||
source | <xsd:element name="PolicyHolderRoleInAccidentCode" type="PolicyHolderRoleInAccidentCodetype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | WitnessIndicatortype | ||||||||
properties |
|
||||||||
source | <xsd:element name="WitnessIndicator" type="WitnessIndicatortype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | ReportWrittenAddresstype | ||||||||
properties |
|
||||||||
source | <xsd:element name="ReportWrittenAddress" type="ReportWrittenAddresstype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | OpponentThirdPartytype | ||||||||
properties |
|
||||||||
children | RoleCode OpponentThirdPartyBreathTestIndicator OpponentPartyCapacityCode CircumstanceColumn | ||||||||
source | <xsd:element name="OpponentThirdParty" type="OpponentThirdPartytype" minOccurs="0" maxOccurs="unbounded"/> |

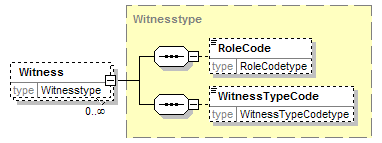

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | Witnesstype | ||||||||
properties |
|
||||||||
children | RoleCode WitnessTypeCode | ||||||||
source | <xsd:element name="Witness" type="Witnesstype" minOccurs="0" maxOccurs="unbounded"/> |

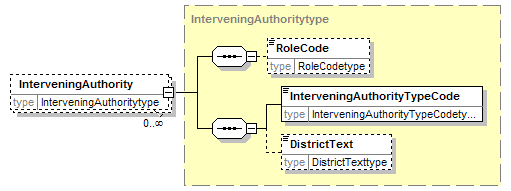

diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | InterveningAuthoritytype | ||||||||
properties |
|
||||||||
children | RoleCode InterveningAuthorityTypeCode DistrictText | ||||||||
source | <xsd:element name="InterveningAuthority" type="InterveningAuthoritytype" minOccurs="0" maxOccurs="unbounded"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | EventAddresstype | ||||||||
properties |
|
||||||||
children | AddressLanguageCode StreetName HouseNumberIdentifier BoxNumberIdentifier AddressIdentifier AddressExtension PostalCode CityCode CityName CountryCode CountryName | ||||||||
source | <xsd:element name="EventAddress" type="EventAddresstype" minOccurs="0"/> |
diagram | |||||||||
namespace | http://www.telebib2.org | ||||||||
type | InsuranceObjecttype | ||||||||
properties |
|
||||||||
children | InsuranceObjectText InsuranceObjectTreatmentCode InsuranceObjectChangeIndicator ObjectRole | ||||||||
source | <xsd:element name="InsuranceObject" type="InsuranceObjecttype" minOccurs="0" maxOccurs="unbounded"/> |
